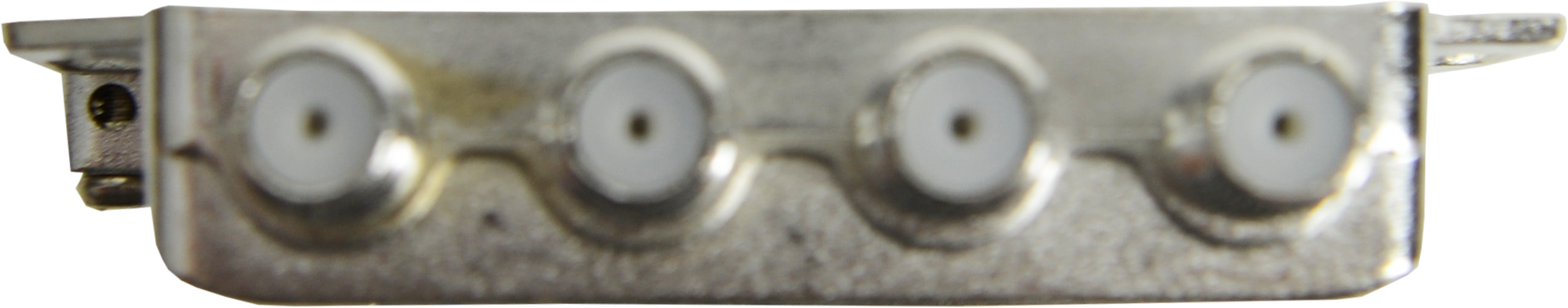

The Kingray range of amplified splitters have been designed to have superior performance for today’s digital television signals. The characteristics of the components elected provide a very low noise figure, high output level and high return loss. The SA124F is a VHF/UHF splitter amplifier with a single input and four outputs, designed to be used when you have enough signal for one outlet but insufficient signal for two or more outlets. it is supplied with 1 adaptor & a power supply to remotely power the amplified splitter.
Product Details
Key Features
- Frequency Range 174 - 694 MHz
- 12dB Maximum Gain
- Single Input
- Four Outputs
- 4G/LTE Filtering
- High Output Figure of 100dB IMR3 (DIN45004B)
- Connectors: F-Type
- Power Consumption: 100mA
- PSK06 Power Supply is included
In the box
- SA124F
- Adaptor x 1
- PSK06 Power Supply
