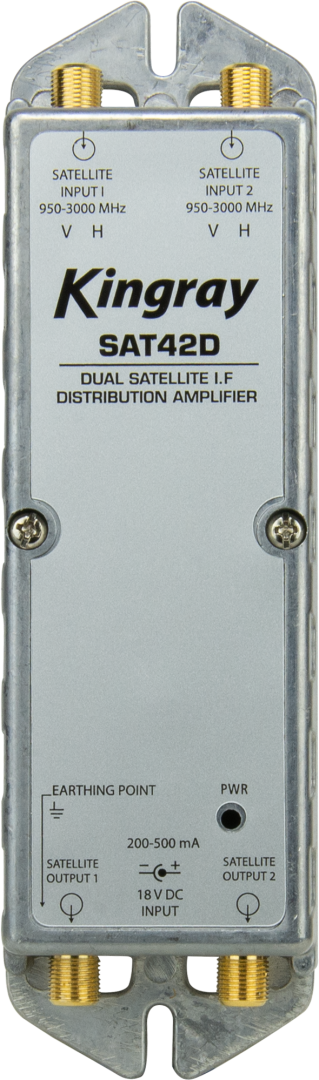

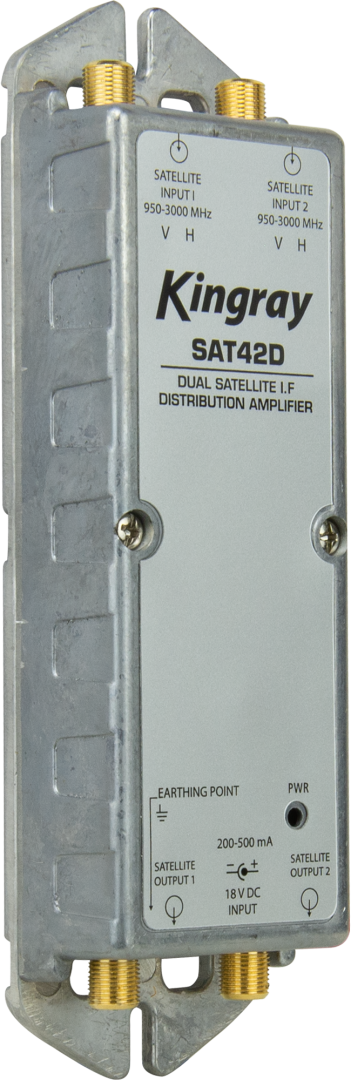

SAT42D
Dual Input Satellite Distribution Amplifier
SAT42D
Dual Input Satellite Distribution Amplifier
Discontinued
3
Year
Warranty
Satellite Distribution Amplifier with 40dB Gain, Dual F-Type Inputs, Frequency Range of 950-3000 MHz & can be either locally or remotely powered
The SAT42D is dual input satellite distribution amplifier. This amplifier can be either locally or remote powered and is capable of powering both vertical and horizontal LNB’s simultaneously via the on board regulator.
Satellite Distribution
Distribution Amplifier
3 Year Warranty
Australian Made
Product Details
Key Features
- Frequency Range 950-3000 MHz
- 40dB Maximum Gain
- 20dB Gain Control
- 15dB Equalisation Control
- Dual Satellite Inputs & Outputs
- High Return Loss
- Noise Figure <10dB
- High Output Figure of 122dB IMR3 (DIN45004B)

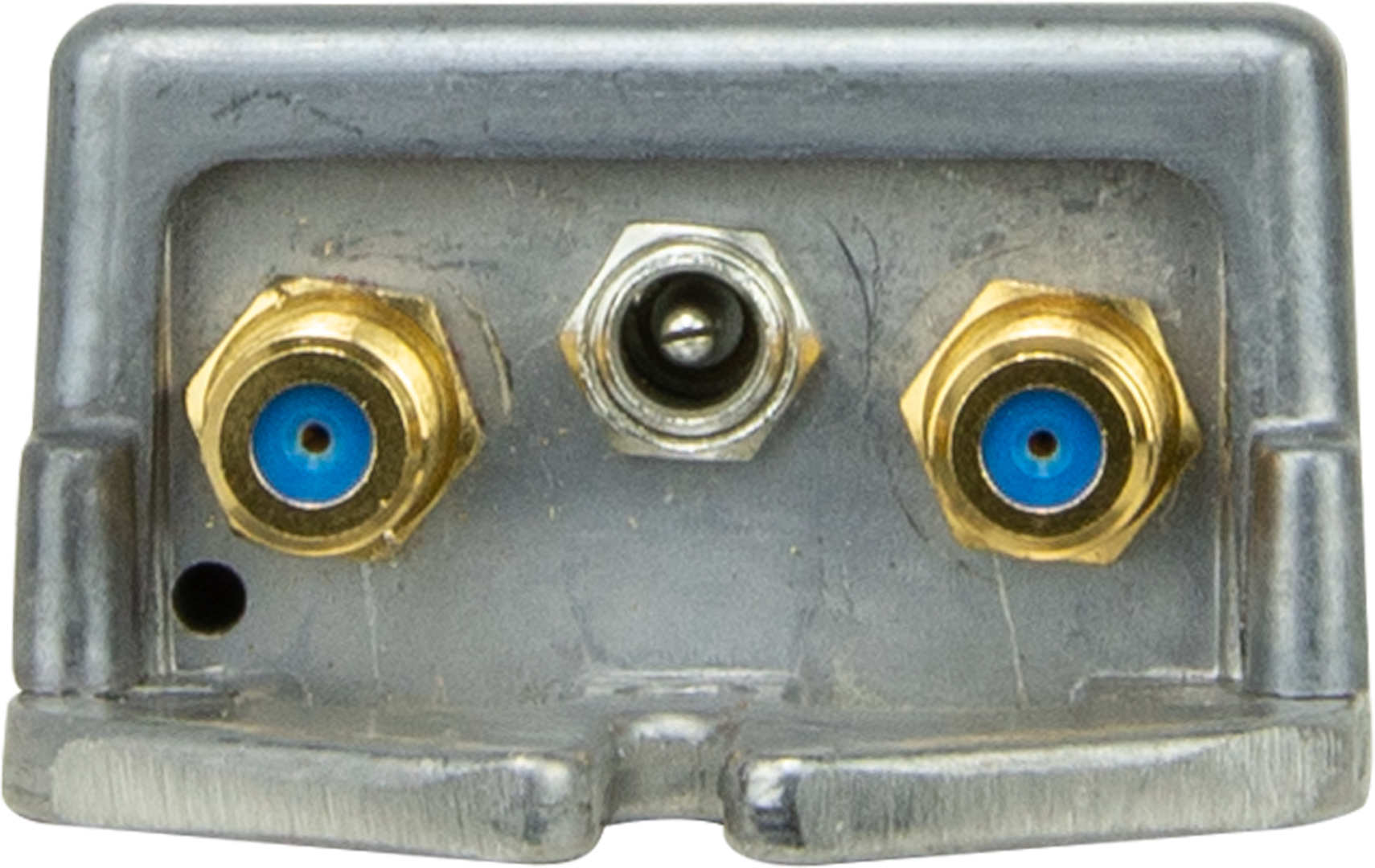

- Connectors: F-Type
- Operating Temperate: -10 to 50 degrees C
- Power Consumption: 200 - 450 mA (Depending on LNB current drain)
- Operating Voltage: 18V DC
- Suitable Power Supply: PSK18S or PSK18F
In the box
- SAT42D
- Installation Manual
- Mounting Screws
