KOT001
Where to Buy

The KOT001 directly modulated optical transmitter has an input range of 47~2600MHz and is specifically designed for the transmission of Digital TV (DVB-C, DVB-T) and Satellite TV (DVB-S) signals.

This transmitter is Foxtel approved & is ideal for use in a FTTx PON system.

Product Details

Key Features

  • Frequency Range 47-2600MHz
  • Optical Output Power: 4mW/6dBm
  • RF Input Power Range: 67~82dB
  • Suitable for Digital TV and Satellite TV Application
  • One fibre can transmit Digital TV (DVB-C, DVB-T) and Satellite TV (DVB-S)
  • Dual Power Supply, 1 + 1 backup
  • Cooled HGHL DFB Laser Provided
  • 1550nmTX can be amplified by EDFA, YEDFA to cover large-scale FTTH
  • Size: 1RU 19" Rack Mountable

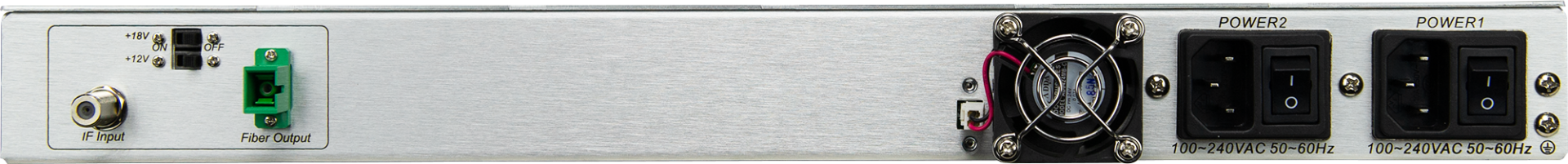

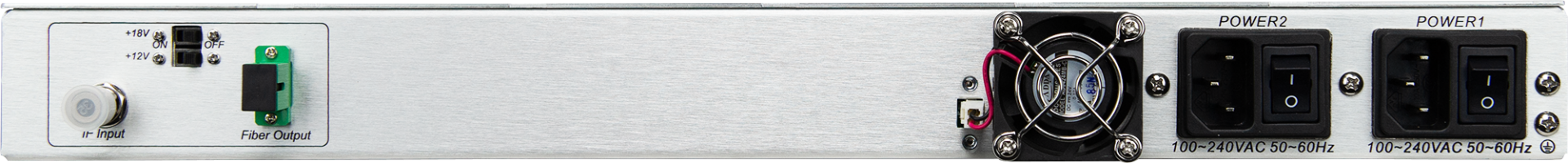

  • Optical Connector: SC/APC
  • RF Connector: F-Female

In the box

  • KOT001
