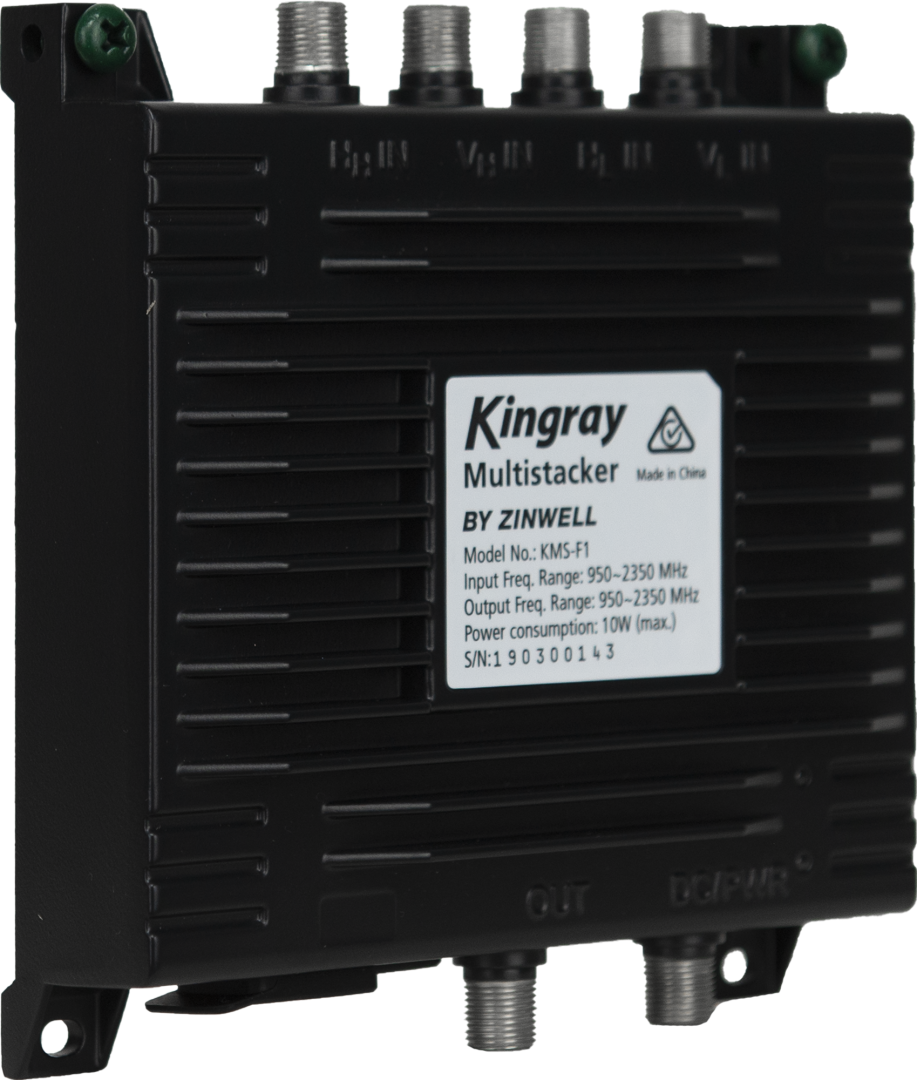

The Kingray KMS-F1 Satellite Multistacker is designed specifically for use with the Foxtel Satellite Platform. The satellite multistacker is a standalone device that can be installed directly after a twin or quad universal vertical – horizontal LNBF. It is typically installed before the first distribution point in the SMATV system. It restacks the vertical polarity transponder services onto a horizontal polarity, allowing the distribution of satellite services via a single cable.

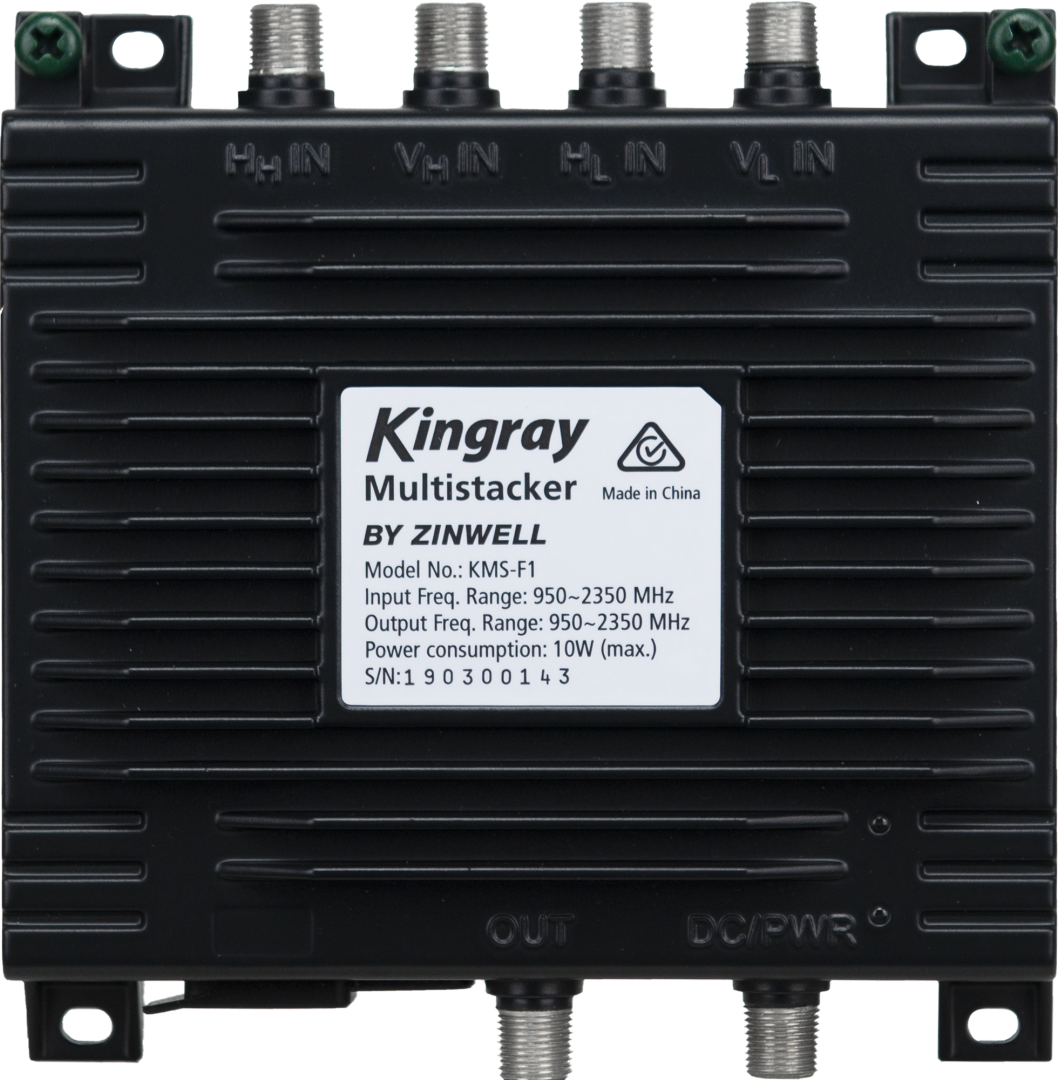

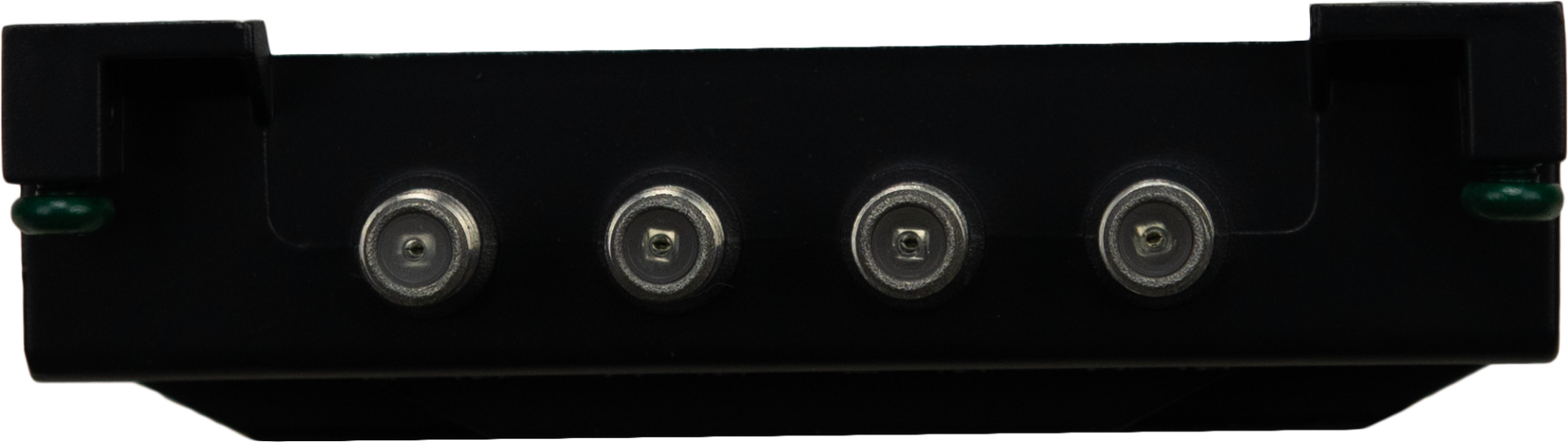

The Multistacker has 4 input ports which cater for low and high band signals
• Low band via DC Voltage
• High band via DC and 22 KHz tone

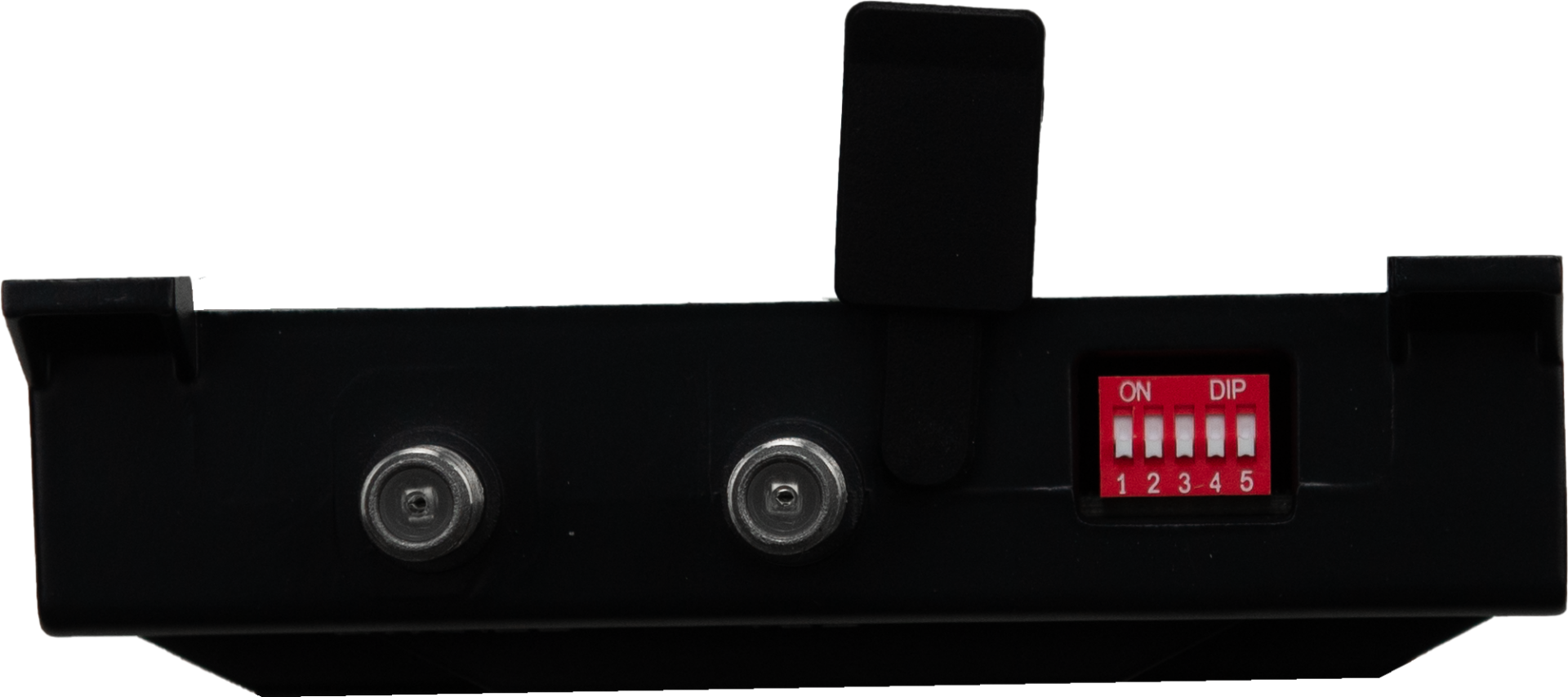

The Multistacker has 2 ports on the bottom
• Output Port: Stacked satellite RF output port with the ability to remotely power the multistacker

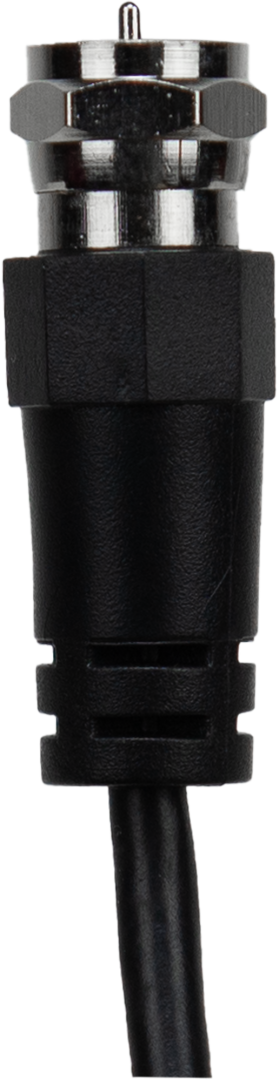

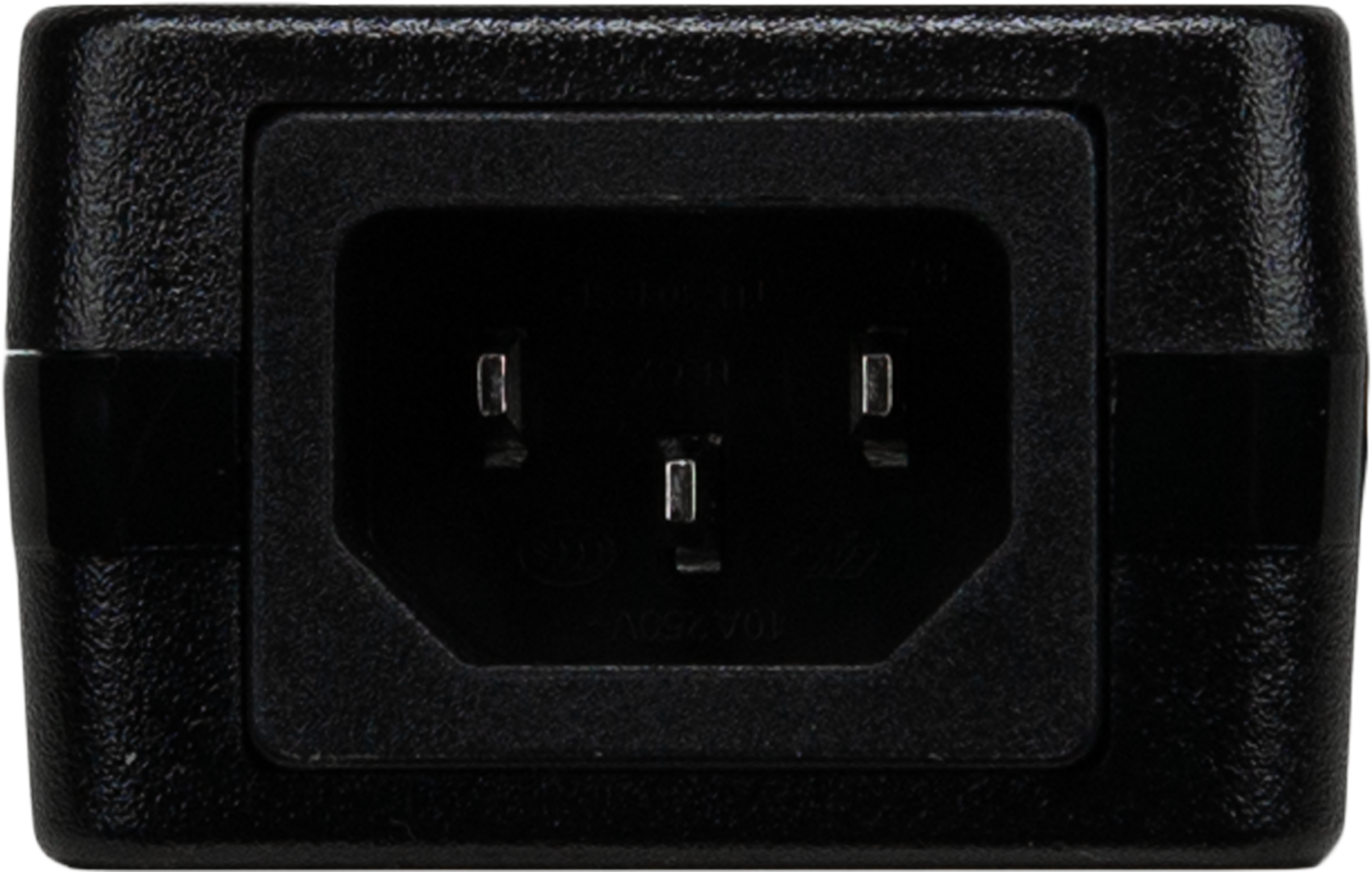

• DC/PWR Port: Local powering via the supplied DC power pack

The installation method for a large variety of building has now become more simplified, such as;

• Domestic homes that are difficult to re-cable.

• MDU’s listed as “non-homes passed” which have been difficult to cable due to cabling access.

• MDU lite buildings that are H polarity only cabled.

•Twin backbone no PVR buildings with single laterals.

• Single wired Commercial Buildings.

• Single wired residential estates including RF or Optical distribution.
